LOWGLOW AMBIENT KIT

Here at LOWGLOW, we’ve already made our mark by dominating the underglow scene, setting the standard for plug-and-play, custom-fit lighting that turns heads and lights up streets across the world for over 4 years. Now? We’re taking that same innovation inside of your vehicle.

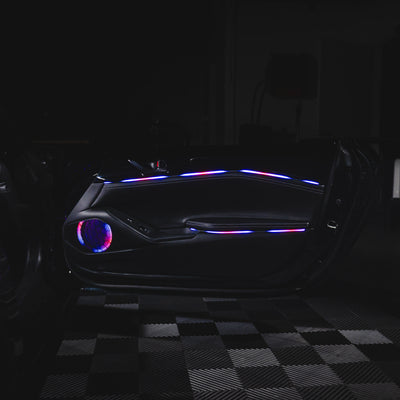

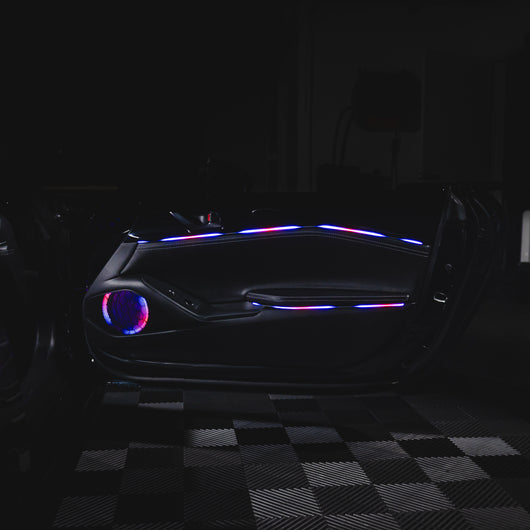

Introducing the LOWGLOW Ambient Lighting Kit a higher quality ambient kit the market needed. Frequent complaints of other ambient kits are the limitations they have by not having enough strips, faulty strips, poor quality, and confusing apps. This is our first universal lighting product we have launched with amazing feedback and results. We fixed the limitations with more strips, a user friendly controller with custom modes, and easier installation. Whether you want an OEM+ look/feel or fully light up your interior you fully have that option!

 WARRANTY:

We offer a 1 Year Warranty for any of our products that are proven to be defective! This warranty does not include misuse, damage, or incorrect installation.

Kit Contents:

- 1x 110cm Strip
- 1x 24cm Strip
- 6x 75cm Strips
- Power Harness
- 4x Sub Harnesses
- 2x Extensions
- 2x Y splits
- 1x Main Controller
- 4x Sub Controllers
- Test Light
- Stickers
- Zipties

    1    Identify your components. Locate the main controller (the larger unit) and the 4 sub-controllers (smaller units). Set aside the main wiring harness.
    2    Wire the main harness for power. The RED and YELLOW wires both need 12V accessory power, 10A fused. The BLACK wire must connect to a clean metal ground. Use the provided test light or google your vehicle's interior acc power supply.
    3    Test main controller. Plug the harness into the main controller, then insert one LED strip into a port labeled DATA. With the vehicle in Accessory Mode, the strip should light up — confirming a successful main power connection.
    4    Harness: Attached to the main harness is a connector labeled button. That is your button switch for the lights. M is for brightness (Hold 5 sec to power off) S is for solid color changes.
    5    Remove door cards / interior trim as needed for the strip locations you've planned.
    6    Tap each sub-controller harness into the door's power connector — 12V accessory or constant power. Use the included test light to confirm a live wire, and ground to a door bolt where possible. Never let the power and ground wires touch while live.
    7    Test sub-controllers + strips before reinstalling any panels. Sub-controllers will not turn on unless the main controller is also powered.
    8    Install LED strips into door cards, dash and center console using a pressure-fit design into your chosen trim locations. Do not overbend the strips.
    9    Secure all wiring with the provided zip ties if necessary, then reinstall door cards and interior trim.
    10    Final test. Put the vehicle in accessory mode (or start it) and confirm every zone responds in the app.
⚠ IMPORTANT: Sub-controller power and ground wires must never make contact while powered — this will short the circuit and may damage the controller. Always disconnect the main harness before re-tapping any wires.
⚠ IMPORTANT: If your strips do not light up, it is most likely a power or ground issue. Try a different power or ground location and re-test.

Refunds:If the LOWGLOW Kit is used/installed refunds are not available. If the LOWGLOW Kit is still new in box, an up to 30% restocking fee will be in place. *60 day of ordering refund policy*

Voltage: 12V

Watts: 14.4W - 28.2W

Amps: 1.2A - 2.35A
